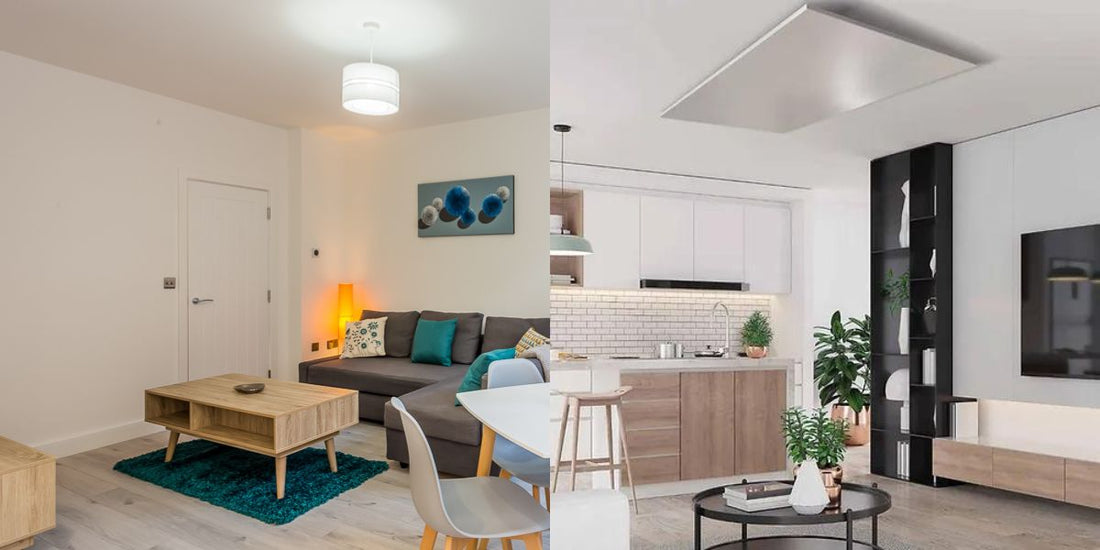

iHelios invisible infrared heating vs infrared panels

Infrared Heating Panels or Infrared Heating Film

Sylwester Raczynski

Infrared heating panels are a modern electric heating solution designed to deliver comfortable, efficient warmth by heating people and surfaces directly rather than warming the air. This article explains how infrared panels work, how they compare to infrared heating film, where each system is best used in homes and buildings, and the potential downsides of infrared heating systems.

While infrared heating can provide energy-efficient radiant warmth, some disadvantages may include higher upfront installation costs, high surface temperatures on certain infrared panels, performance depending on insulation quality, and current UK SAP and EPC modelling limitations. However, many concerns discussed online relate mainly to older high-temperature infrared panels rather than modern low-temperature infrared heating film systems installed under floors or ceilings.

Both infrared panels and infrared heating film can offer low-maintenance, space-saving electric heating with smart zoning and fast response times. The best option depends on the building type, insulation levels, room layout, installation method, and whether visible or invisible heating is preferred.

Infrared Heating Panels vs. Infrared Heating Film: Choosing the Best Electric Radiant Heater for Your Space

As more people seek efficient and eco-friendly heating solutions, infrared heaters and infrared heating films are becoming increasingly popular.
Both options offer quick, targeted warmth while saving energy.
However, they differ significantly in design, installation, surface temperature, and applications.

Here’s a complete guide to help you choose between infrared heating panels and infrared heating film, so you can find the best fit for your home or office.

1. How Infrared Heating Works

Both infrared panels and infrared heating films use radiant heating technology.
Instead of warming the air, they directly heat objects and people, providing a cozy, natural warmth — much like sunlight.

  • Infrared Panels: These are solid electric heaters mounted on walls or ceilings.
    They contain a heating element encased in materials like glass or metal and emit steady infrared rays when powered.
  • Infrared Heating Film: This thin, flexible material is installed under floors or on ceilings.
    When connected to a power source, it radiates even heat across a large surface area.

Thus, while both systems use the same heating principle, their construction and appearance are quite different.

2. Surface Temperature

Surface temperature plays a crucial role when choosing an electric infrared heater.
It affects heating performance, safety, and placement.

  • Infrared Panels: These panels typically reach surface temperatures between 80°C and 120°C.
    This high heat allows quick room heating but requires careful installation to avoid accidental contact.
    Therefore, they are best placed high on walls or ceilings.
  • Infrared Heating Film: Heating film operates at lower surface temperatures, around 35°C to 55°C.
    As a result, it is safe for installation under floors or behind walls, delivering gentle, even warmth without becoming dangerously hot.

3. Installation and Aesthetics

Installation and visual impact vary greatly between the two systems.

  • Infrared Panels: These are visible after installation but come in stylish designs such as mirrored or artwork panels.
    Consequently, they can enhance your room’s decor while providing heat.
    Installation is straightforward, generally involving mounting and connecting to a power source.
  • Infrared Heating Film: This option remains completely hidden once installed.
    Although installation is more complex and usually requires professional help, it offers a seamless, clutter-free aesthetic ideal for minimalist spaces.

4. Applications and Best Uses

Each system suits different environments and heating needs.

  • Infrared Panels: Best for targeted, zonal heating.
    They are ideal for residential rooms, small offices, or bathrooms where focused warmth is needed.
    Moreover, their portability allows you to relocate them if necessary.
  • Infrared Heating Film: Perfect for whole-room heating or underfloor installations.
    It delivers consistent, even warmth across large areas, making it excellent for new builds, renovations, or spaces where design minimalism is a priority.

5. Energy Efficiency and Control

Both infrared heating options are energy-efficient, but their control setups differ.

  • Infrared Panels: Typically controlled individually via thermostats.
    This setup allows you to easily adjust temperatures room by room, optimizing energy use.
  • Infrared Heating Film: Connected to multizone thermostats.
    Thus, it offers consistent heating across larger areas while maintaining excellent energy efficiency, especially in well-insulated spaces.

infrared heating temperature control

6. Maintenance and Longevity

Maintenance and access vary between panels and films.

  • Infrared Panels: Easily accessible for cleaning and maintenance.
    If a panel needs replacement, it can be swapped out with minimal disruption.
  • Infrared Heating Film: Hidden beneath floors or ceilings, making direct access more difficult.
    However, it is extremely durable and designed to last for decades without frequent maintenance.



Which Infrared Heating Option Is Right for You?

Infrared Heating Panels vs Infrared Heating Film Comparison

Feature Infrared Heating Panels Infrared Heating Film
Heating Type Visible radiant heater Invisible radiant heating system
Installation Location Wall or ceiling mounted Underfloor or ceiling integrated
Visibility Visible after installation Completely hidden once installed
Surface Temperature Typically 80°C–120°C Typically 35°C–55°C
Heating Style Targeted zonal heating Even whole-room radiant heating
Best For Single rooms, bathrooms, offices, retrofit projects Whole-home heating, new builds, renovations
Heat Distribution More directional Wide and even radiant coverage
Furniture Impact Furniture can partially block heat Less affected due to larger heating area
Installation Complexity Easier retrofit installation More complex professional installation
Aesthetic Impact Decorative or visible panel Invisible heating solution
Maintenance Access Easy access and replacement Hidden but low maintenance
Smart Controls Individual thermostats Multizone smart thermostat systems
Floor Space Usage No floor space used No visible heating components
Running Experience Fast radiant warmth Gentle consistent radiant warmth
Safety Considerations Higher surface temperatures Lower operating temperatures
Typical Applications Apartments, offices, bathrooms, home offices Homes, extensions, open-plan spaces, garden rooms
System Lifespan Long lifespan depending on panel quality Designed for decades of operation
Main Advantages Fast installation, stylish designs, targeted heating Invisible heating, even warmth, minimalist design
Potential Downsides Higher panel temperatures, directional heating Higher installation complexity and upfront cost
  • Choose Infrared Panels if you prefer a visible, high-temperature radiant heating system that is easy to install, stylish, and flexible for smaller spaces or zones.
  • Opt for Infrared Heating Film if you want a hidden, low-temperature heating solution ideal for whole-room, underfloor, or large-area applications with a clean, invisible setup.

Both options provide energy-efficient, sustainable warmth and serve as excellent alternatives to traditional electric heaters.
Ultimately, the best choice depends on your design preferences, control needs, and the level of warmth your space requires.

Infrared heating panels are flat, electric radiant heaters that emit infrared energy to warm surfaces and objects directly, rather than heating air.

Infrared panels emit infrared waves that travel through the air and are absorbed by walls, floors, furniture, and people, which then radiate warmth back into the room.

In many cases, infrared panels can fully replace central heating systems, especially in low-energy homes or where zoning and individual room control are desired.

Panel size depends on room dimensions, insulation quality, ceiling height, and use case. Proper heat load calculation ensures efficient panel selection.

nfrared panels are rigid, flat heaters mounted on walls or ceilings, while infrared heating film is a thin, flexible heating layer installed behind ceilings, walls, or floors.

Both use radiant infrared heat, but panels emit heat from a visible surface, whereas infrared film creates a large, evenly heated surface hidden within the building structure.

Infrared heating film is often preferred for ceiling heating because it can cover large areas invisibly, whereas ceiling-mounted panels heat from specific fixed points.

Yes. Both systems can use smart thermostats, timers, zoning, occupancy sensors, and automation features such as open-window detection.
