800W Micro Inverter for Plug in Solar System, IP67 Rated
Harness the power of the sun with our plug-in solar micro inverter. Designed for UK homes and businesses, this compact system converts DC power from your solar panels into usable AC electricity with minimal installation fuss. Perfect for renters, retrofits, and those seeking energy independence without the complexity of traditional solar setups.
Register or Log in for trade prices
✓ Compatible with Any Solar Panels✓ Seamless System Integration ✓ UK Expert Support
Description
2-in-1 Microinverter for Plug-in Solar Systems
This 2-in-1 microinverter is designed to convert solar panel energy into usable AC electricity with high efficiency, flexible installation and smart panel-level performance. It allows two solar panels to connect independently to one compact inverter, helping each panel perform efficiently even when shading, orientation or panel output varies.
Ideal for plug-in solar systems, balcony solar, garden installations, garages, outbuildings and modular solar setups, this microinverter offers a simple way to build or expand a solar system without the complexity of a traditional string inverter.
Key Benefits
- 2-in-1 solar input: connect two solar panels to one compact microinverter.
- Independent MPPT control: each panel is managed separately to help maximise solar generation.
- Output options: suitable for systems from 600W up to 1000W depending on the selected model.
- Plug-and-play design: simpler installation compared with larger inverter systems.
- Expandable setup: multiple units can be connected as your solar system grows.
- Compact and lightweight: slim design for discreet installation behind or near solar panels.
- Improved shading performance: if one panel is affected by shade, the second panel can continue operating independently.
- Smart monitoring compatible: track energy generation and system performance using compatible monitoring accessories.
Why Choose a 2-in-1 Microinverter?
A microinverter works at panel level, rather than relying on one central inverter for the whole solar array. This helps reduce performance losses caused by shading, panel mismatch or different panel orientations.
For small solar installations, plug-in solar systems and expandable solar kits, this makes a 2-in-1 microinverter a practical solution where safety, flexibility and simple installation are important.
Suitable Applications
- Plug-in solar systems
- Balcony solar installations
- Garden solar systems
- Garage and outbuilding solar
- Small residential PV systems
- Expandable solar kits
- Solar systems with mixed panel orientation or partial shading
Technical Specification
| Product Type | 2-in-1 Solar Microinverter |
| Recommended Module Power | 2 X 300W – 600W+ per panel, depending on model |
| MPPT Voltage Range | 16V – 60V |
| Maximum Input Voltage | 60V |
| Maximum Input Current | 14A |
| Maximum Short-Circuit Current | 20A |
| Nominal Output Power Options | 800W |
| Dimensions | 250 × 223 × 30mm |
| Weight | Approx. 3.1kg |
| Connection Type | Daisy chain / parallel design |
| Installation Style | Plug-and-play design |

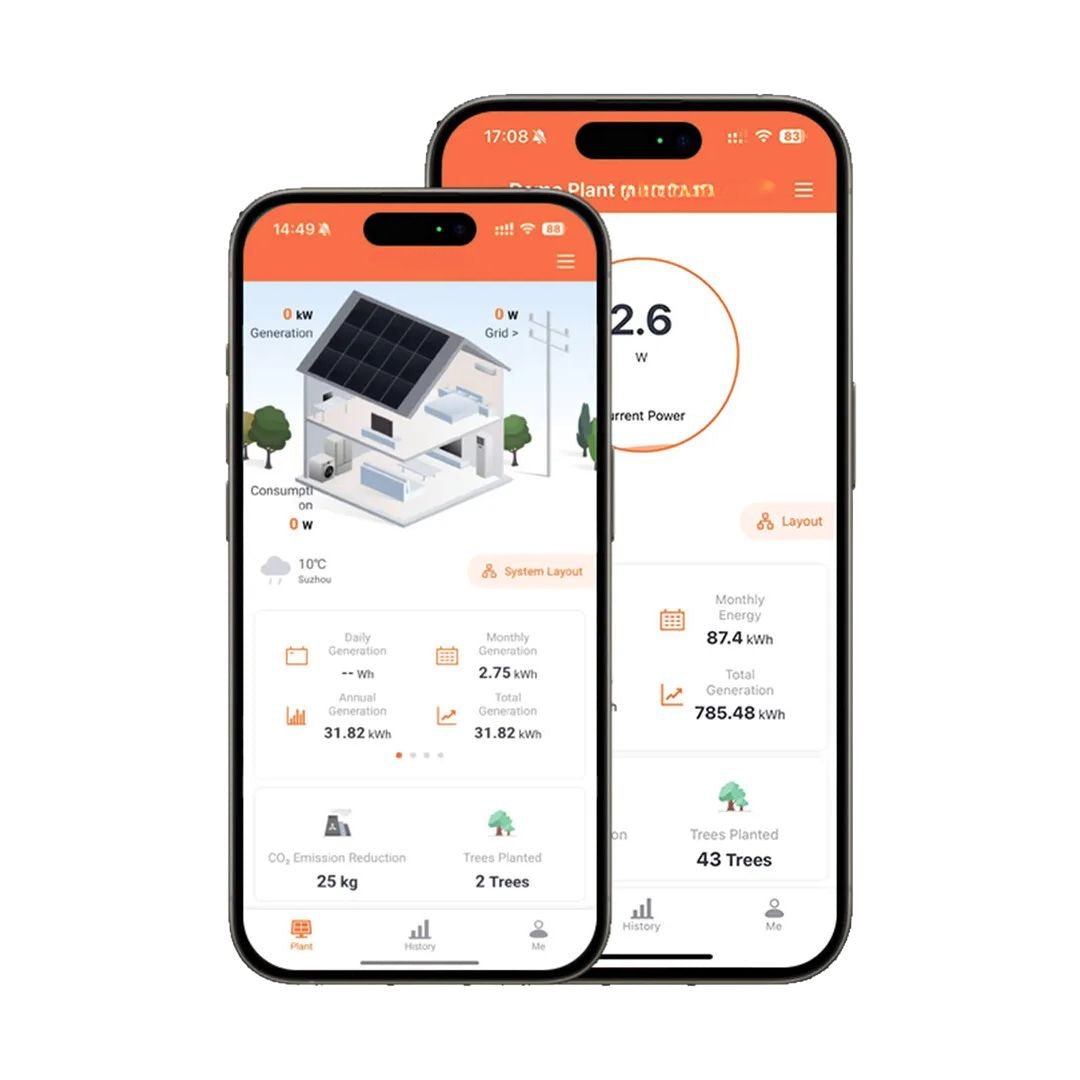

Smart Monitoring and System Control
Compatible monitoring allows users to view solar production, check system status, review energy performance and identify any system alerts. This helps make the system easier to manage and supports better long-term solar performance.
Expandable Solar Made Simple
The expandable design allows multiple microinverters to be connected together, making it easier to start with a smaller solar setup and expand over time. This helps reduce upfront cost while keeping future upgrade options open.
Important Installation Note
Installation must follow UK electrical regulations, product instructions and local grid connection requirements. For grid-connected systems, always check whether G98 notification or approval is required before installation.
